Sensors and Software Conquest 100 GPR - Sale! (Used)

Sensors and Software Conquest 100 GPR

The Sensors & Software Conquest 100 Ground Penetrating Radar is a light, portable device that provides a fast, non-invasive method to gain accurate insights of objects below the surface, even on a curved surface or column. The Sensors & Software Conquest 100 reduces risk by detecting rebar, post-tension cables, metallic and non-metallic conduits as well as current-carrying wires embedded in concrete. Once your scan is complete, the Conquest 100 connects to your mobile device, allowing the emailing of information directly from the field. The data can then be used to make client-ready reports in minutes. This product also has a mobility kit option.

The Sensors & Software Conquest 100 has helpful features such as a high-resolution touchscreen, swappable lithium-ion battery, power cable detector, screen capture function, and lightweight sensor head. The power cable detector ensures safety by locating current-carrying cables in the area. The lightweight sensor head enables easy scanning of walls and ceilings.

FEATURES:

o  High resolution touchscreen

o  Swappable Li-Ion battery

o  Power cable detector (PCD)

o  Screen capture function

o  Lightweight sensor head

Applications:

o  Location of rebar, post-tension cables, metallic and non-metallic conduits embedded in concrete

o  Detailed scans of concrete floors, decks, columns, walls, and ceilings

o  Mapping current carrying wires through PCD technology.

Standards:

o  FCC 15.509

o  Industry Canada RSS-220

o  ETSI EN-302066

SPECIFICATIONS:

Antenna Frequency: 1 GHz (1000 MHz)

Data Collection Modes:

LineScan: max line length 50 m (150 ft)

GridScan: 60 × 60 cm (2 × 2 ft), 60 × 120 cm (2 × 4 ft), 120 × 120 cm (4 × 4ft)

Enhanced: 240 × 240 cm (8 × 8 ft), 240 × 60 cm (2 × 8 ft)

Data Export Format:

PNG graphics image files, PDF mini reports via e-mail through Wi-Fi

Enhanced: Project (gpz) digital data file

Data Quality Enhancement:

DynaQ – Dynamic Auto Stacking Spatial Filtering

View Depth: User-defined: 30 cm – 91 cm (12 in – 36 in)

GPR Trigger: 2 Wheel Drive optical encoder, <0.5 mm resolution

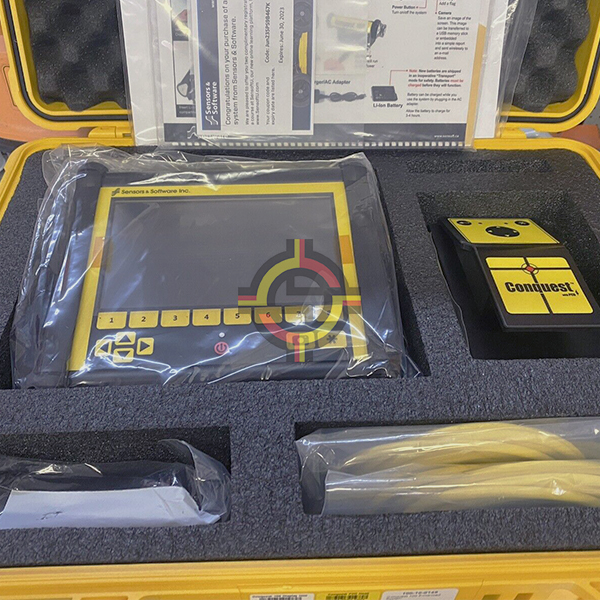

PACKAGE INCLUDES:

ü Sensors and Software Conquest 100 Ground Penetrating Radar (GPR) Concrete Scanner

ü Display unit

ü Sensor head

ü Sensor cable

ü Battery

ü Battery charger / AC Adapter

ü AC Adapter cord

ü Harness

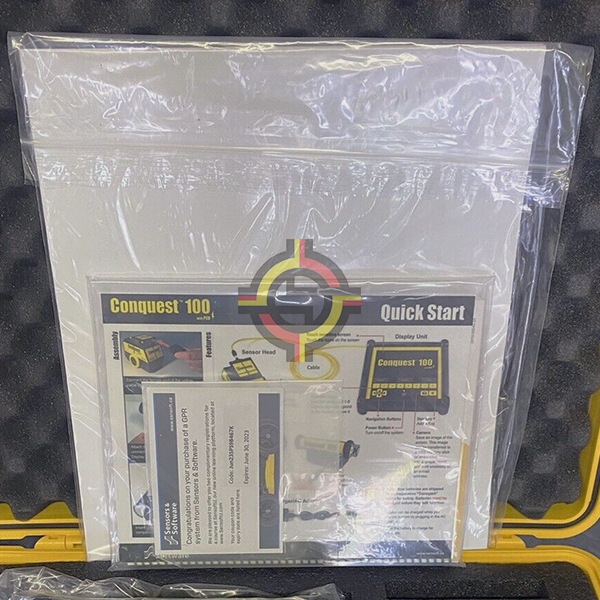

ü Instruction manual

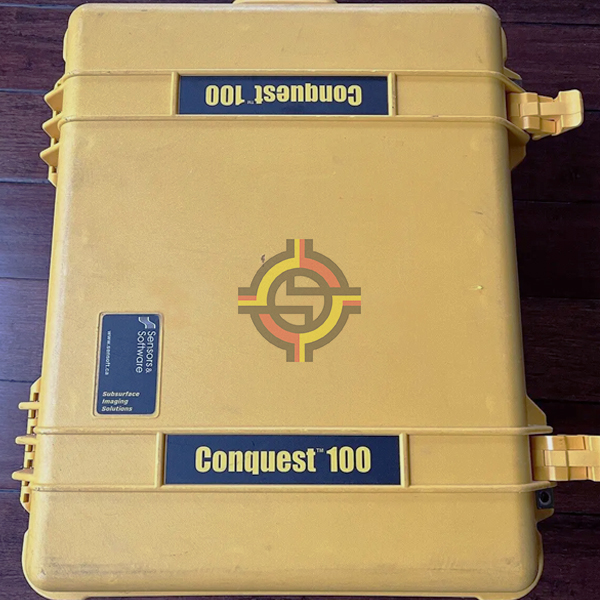

ü Carrying case
