Pruftechnik Rotalign Ultra IS Laser Shaft Alignment System - Sale! (Used)

Pruftechnik Rotalign Ultra IS Laser Shaft Alignment System

The Rotalign Ultra iS, the highly versatile laser shaft alignment system by Pruftechnik, will help to reduce machine downtime, increase machine efficiency, increase productivity, lower energy costs and therefore save money. Ideal for internal combustion engines, piston compressors, crosshead guides, pumps, stern tubes and extruder barrels. Align steam and gas turbine internals, bearing rings, diaphragms, inner shells and casings.

Precision alignment guarantees

o  Reduced energy consumption

o  Reduction in bearing, seal, shaft and coupling failures

o  Decreased bearing and coupling temperatures

o  Reduced vibration

o  Improved product quality

Advantages of laser shaft alignment

Easy to use single laser technology with patented continuous sweep measurement from PRÜFTECHNIK lets you take hundreds of readings, with the highest accuracy, under the worst of field conditions, ensuring fast yet easy alignments.

User-friendly and intuitive

o  Accurate and precise

o  Take unlimited readings at any desired positions

o  Measurement repeatability and documentation through a measurement table offering powerful data analysis capabilities

o  Live monitoring of machine corrections in vertical and horizontal directions simultaneously

o  Documentation and professional reports in color, with pictures and graphs

SPECIFICATIONS:

CPU

Mavell XScale Processor running at 520 MHz

Memory

64 MB RAM, 64 MB Internal Flash, 1024 MB Compact Flash Memory

Display

Type: Transmissive (sunlight-readable) backlit TFT color graphic display

Resolution: Full VGA, 640 x 480 pixels;

Dimensions: 145 mm/ 5.7 inch diagonal

Keyboard elements: navigation cursor cross with up, clear and menu keys; Alphanumeric keyboard with dimensions, measure and results hard keys

LED indicators

4 LEDs for laser status and alignment condition

2 LEDs for wireless communication and battery status

Power supply

Operating time: 25 hours (using Li-Ion rechargeable battery) 12 hours (using disposable batteries) typical use (based upon an operating cycle of 25% measurement, 25% computation and 50% ‘sleep’ mode)

Lithium-Ion rechargeable battery: 7.2 V / 6.0 Ah

Disposable batteries: 6 x 1.5 V IEC LR14 (“C“) [optional]

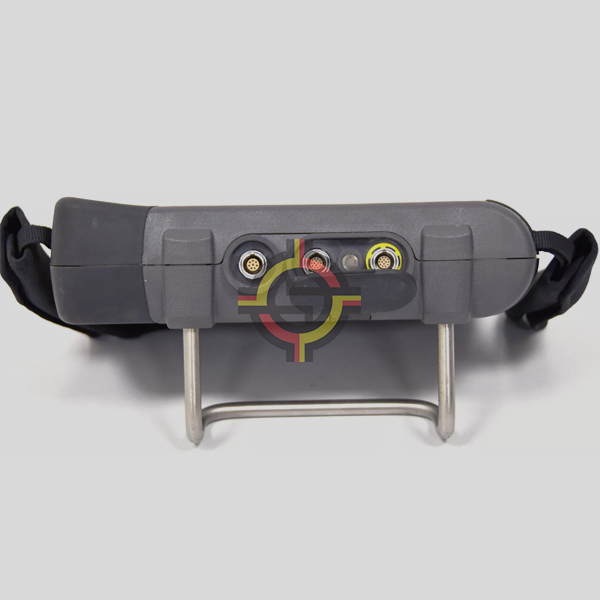

External interface

~    2 x USB host for printer, keyboard or PC communication

~    1 x USB slave for printer, keyboard or PC communication

~    RS232 (serial) for receiver

~    I-Data socket for receiver

~    Integrated Bluetooth® wireless communication, Class 1, transmitting power 100mW

~    AC adapter/charger socket

Environmental protection

IP 65 (dustproof and water spray resistant), shockproof

Relative humidity 10% to 90%

Temperature range

Operation: 0°C to 45°C [32°F to 113°F]

Storage: -20°C to 60°C [-4°F to 140°F]

Weight: 1 kg (without battery)

CE conformity: EC guidelines for electric devices (2004/108 EEC) are fulfilled

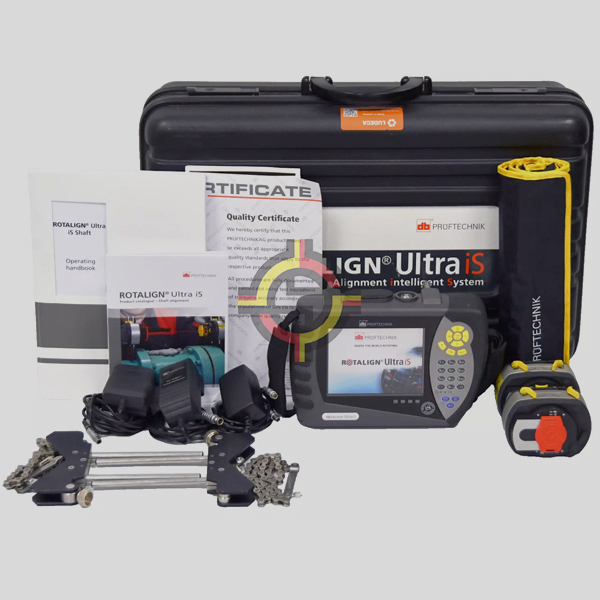

INCLUDED:

ü Pruftechnik Rotalign Ultra IS Laser Shaft Alignment System w/ (BC# 42488-L/T*)

ü Installed Applications:

▫Program Manager V3.11

▫Shaft Alignment V3.11

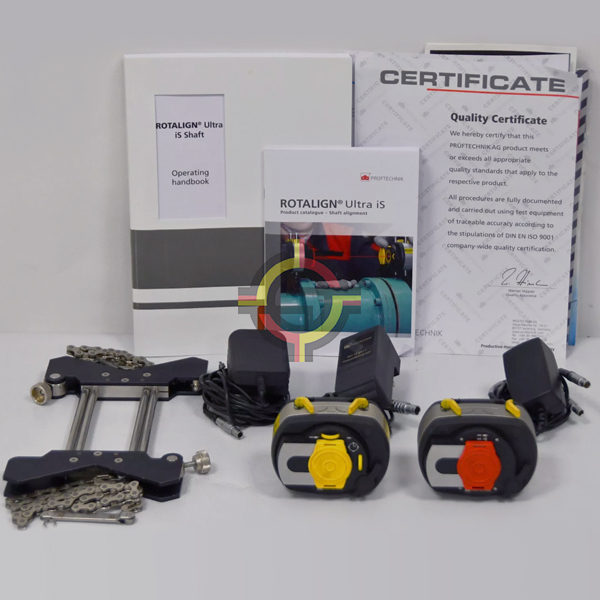

ü Rotalign SensALIGN Laser ALI 4.910

ü Rotalign SensALIGN Sensor ALI 4.900

ü Rotalign PC/USB Cable

ü Rotalign USB/Peripheral Device Cable

ü Rotalign SensALIGN Sensor & Laser Cable

ü Rotalign SensALIGN Charger/Adapter

ü Rotalign Set Chain Bracket Set ALI 2.113

ü Vibration Check Probe

ü  (2) Allen Wrenches

ü Rotalign Pocket Guide

ü  (27) Support Posts w/ Case

ü AC Adapter/Charger

ü Hard Copy User Manual

ü Hard Carrying Case
