Pruftechnik Rotalign Touch Laser Shaft Alignment System

The ROTALIGN touch is the most powerful laser shaft alignment platform on the market. The ROTALIGN touch truly is unique. Let's find out how the leading laser shaft alignment system delivers the best measurement accuracy while offering the most innovative features that save you time and effort.

FEATURES:

o  Intelligent measurement modes including uncoupled intelliPASS and intelliPOINT

o  Cardan shaft alignment with cardan in place

o  Vertical machine alignment with vertiSWEEP continuous measurement mode

o  Softfoot diagnostics

o  Live Trend

o  Horizontal and Vertical move simulator

o  Measurement table including different alignment jobs

o  Machine train with real 3D machines

o  Real time Intelligent measurement quality

o  Customized tolerances (even asymetrical)

SPECIFICATIONS:

CPU

Processor: 1.0 GHz quad core ARM®Cortex-A9

Memory: 2 GB RAM, 1 GB Internal Flash, 32 GB SD-Card Memory

Display

Technology: Projective capacitive multi-touch screen

Type: Transmissive (sunlight-readable) backlit TFT color graphic display Optically bonded, protective industrial display, integrated light sensor for automated adjustment of the brightness to the display

Resolution: 800 x 480 Pixel

Dimensions: 178 mm (7”) diagonal

LED indicators

3 LEDs for battery status, 1 LED for WiFi communication

Power supply

Operating time: 12 hours typical use (based upon an operating cycle of 25% measurement, 25% computation, 50% ‘sleep’ mode)

Battery: Lithium-ion rechargeable battery 3.6 V / 80 Wh AC Adapter/charger: 12 V / 36 W; standard barrel connector (5.5 x 2.1 x 11 mm)

External interface

USB host for memory stick USB slave for PC communication, charging (5 V DC / 1.5 A) RS-232 (serial) for sensor, RS-485 (serial) for sensor I-Data for sensor Integrated Bluetooth® wireless communication (covers direct line of sight distances of up to 30 m / 100 ft depending on the prevailing envir-onmental conditions) Integrated Wireless LAN IEEE 802.11 b/g/n up to 72.2 Mbps (depending on configuration) Integrated RFID with read and write capabilities (depending on con-figuration)

Environmental protection

IP 65 (dustproof and water jets resistant) – as defined in regulation DIN EN 60529 (VDE 0470-1), shockproof

Relative humidity: 10% to 90%

Drop test: 1 m (3 1/4 ft)

Temperature range

Operation: 0°C to 40°C (32°F to 104°F)

Charging: 0°C to 40°C (32°F to 104°F)

Storage: -10°C to 50°C (14°F to 122°F)

Dimensions: Approx. 273 x 181 x 56 mm (10 3/4” x 7 1/8” x 2 3/16”)

Weight: Approx. 1.88 kg (4.1 lbs)

Camera: 5 MP built-in (depending on configuration)

LEDs: Risk Group 1 according to IEC 62471:2006

CE conformity

Refer to the CE compliance certificate in www.pruftechnik.com

FCC compliance

Requirements fulfilled (refer to the provided document ‘Safety and gen-eral information’)

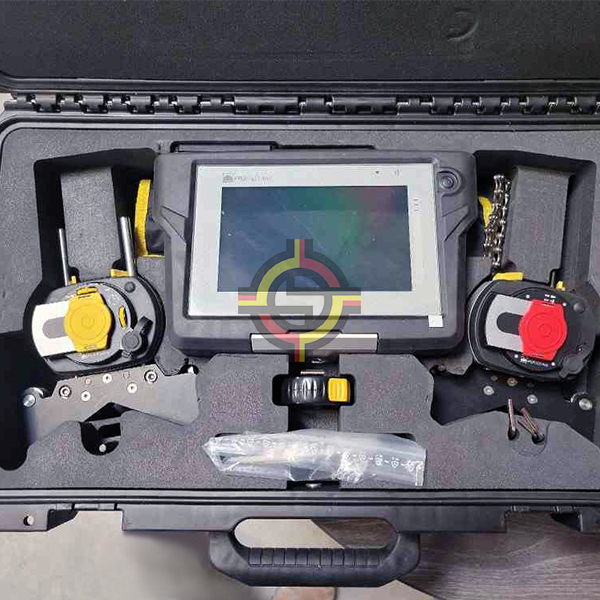

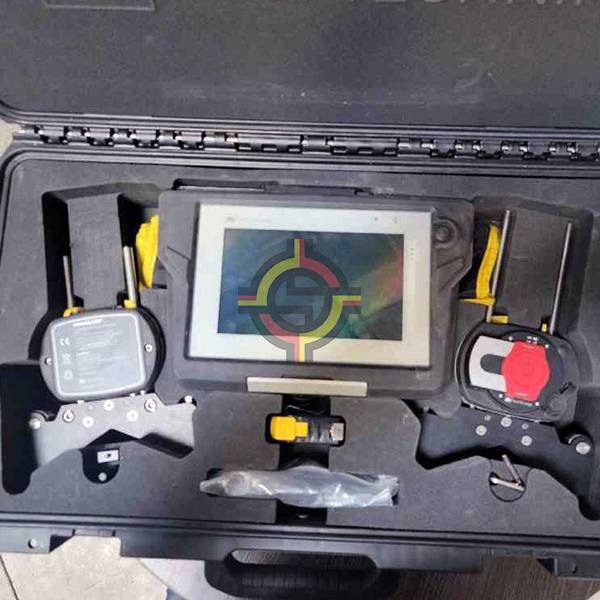

INCLUDED:

ü Pruftechnik Rotalign Touch Laser Shaft Alignment System (BC# -L/T*)

ü Rotalign SensALIGN Laser

ü Rotalign SensALIGN Receiver

ü (2) Chain Brackets

ü Tape Measurer

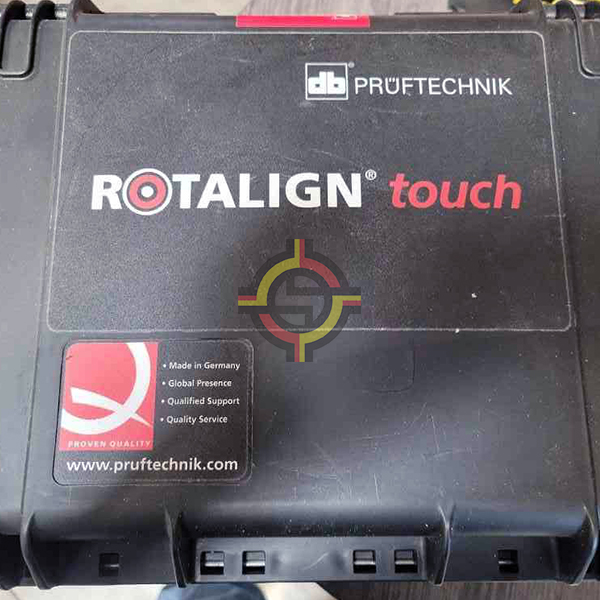

ü Carrying Case (G)

ü MEMS inclinometers
