Pruftechnik Optalign Touch Laser Alignment System

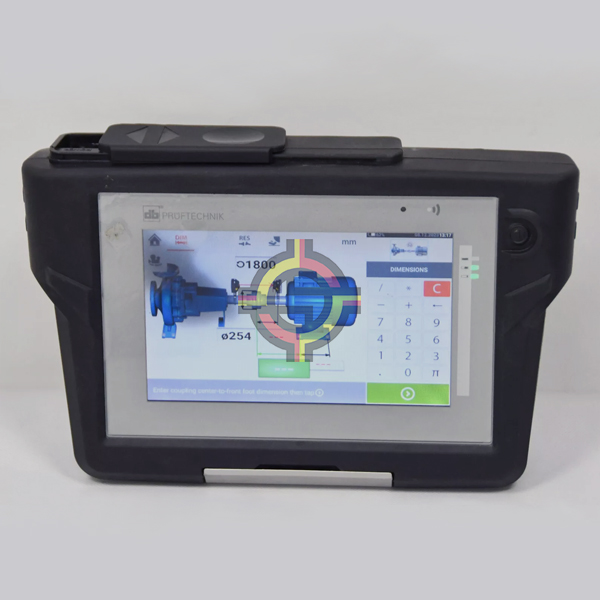

The OPTALIGN Touch by PRÜFTECHNIK is a touch screen device used to control and read data from the PRUFTECHNIK senseALIGN and infiniRange systems and it was designed by some of the world’s leading alignment experts to solve problems in the easiest way possible.

The sensALIGN® technology is based on the inherent PRÜFTECHNIK single laser technology, providing highly accurate measurement results, as well as the easiest mounting and measuring in the field. sensALIGN® sensors include two HD large position sensitive detectors (PSD) and MEMS inclinometers, whilst also connecting wirelessly to the device via Bluetooth®.

Combined with the detector extension capability InfiniRange®, there is no need for pre-alignment as it is always possible to measure the initial alignment condition, no matter how big the misalignment is. The live corrections of the machine can also be started at any sensor clock position after the measurement shaft rotation.

This touch screen device is made for maximum durability. Not only it is waterproof and dust-proof according to IP65, but it is also shock-proof, oil, dirt and scratch resistant.

FEATURES:

o  User-friendly interface that guides users on how to measure and align machinery

o  Single laser technology provides highly accurate measurements every time

o  Allows simultaneous real-time machine corrections in both horizontal and vertical directions

o  Automatic collection of alignment data during shaft rotation

o  WiFi and Bluetooth connectivity for easy measurement sharing and team collaboration

o  Covered by Fluke Reliability Extended Warranty Program

SPECS:

CPU: 1.0 GHz quad core ARM Cortex-A9

Memory: 2 GB RAM, 1 GB Internal Flash, 32 GB SD-Card Memory

Display

Projective capacitive multi-touchscreen

Transmissive (sunlight-readable) backlit TFT color graphic display; optically bonded, protective

industrial display, integrated light sensor for automated adjustment of the brightness to the display

Resolution: 800 x 480 Pixel

Dimensions: 178 mm (7”) diagonal

LED indicators

3 LEDs for battery status

1 LED for WiFi communication

Power supply

Lithium-ion rechargeable battery 3.6 V / 80 Wh

12 hours typical use*

AC adapter/charger: 12 V / 36 W; standard barrel connector

*(based upon an operating cycle of 25% measurement, 25% computation, 50% 'sleep' mode)

External

Interface USB host for memory stick

USB slave for PC communication, charging (5 V DC / 1.5 A)

RS-232 (serial) for sensor, RS-485 (serial) for sensor, I-Data for sensor,

Bluetooth, WiFi, RFID integrated

Integrated Wireless LAN IEEE 802.11 b/g/n up to 72.2 Mbps

Camera: 5 MP

Environmental protection: IP 65 (dustproof and water jets resistant)

Shockproof

Relative humidity: 10% to 90%

Drop test: 1 m (3 1/4 ft)

Temperature range

Operation / Charging: 0 °C to 40 °C (32 °F to 104 °F)

Storage: -10 °C to 50 °C (14 °F to 122 °F)

Dimensions: Approx. 273 x 181 x 56 mm (10 3/4" x 7 1/8" x 2 3/16")

Weight: Approx. 1.88 kg (4.1 lbs)

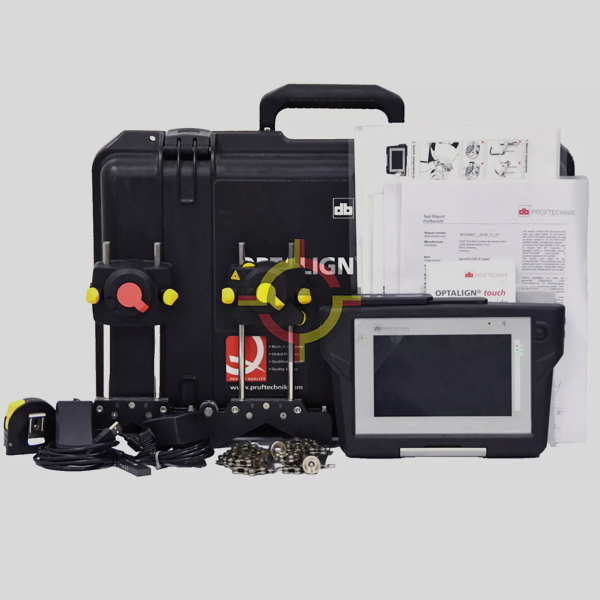

INCLUDES:

ü Optalign Touch Laser Shaft Alignment Analyzer

ü Hard Case

ü Manual

ü Power Supply

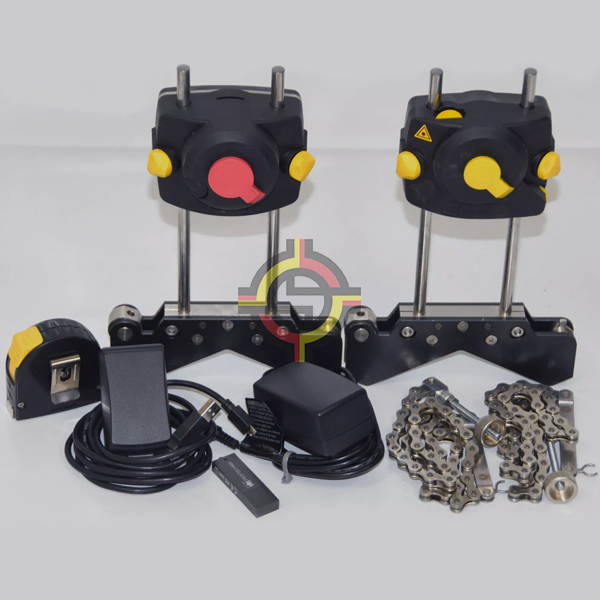

ü Rotalign SensALIGN 5 Laser

ü Rotalign SensALIGN 5 Receiver

ü (2) Chain Brackets
