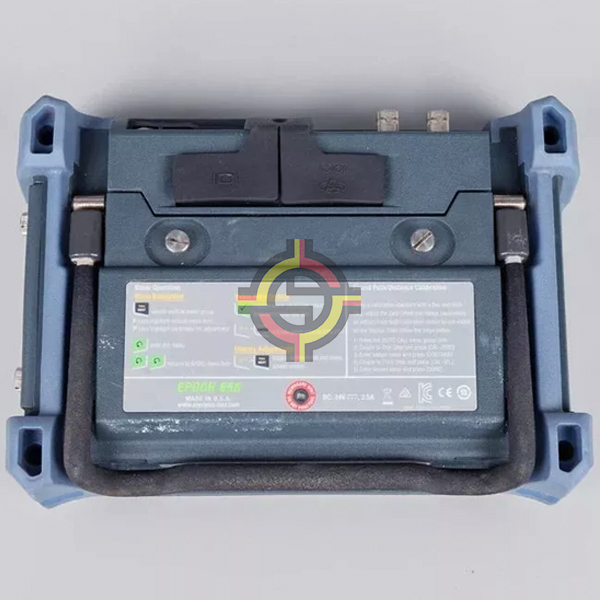

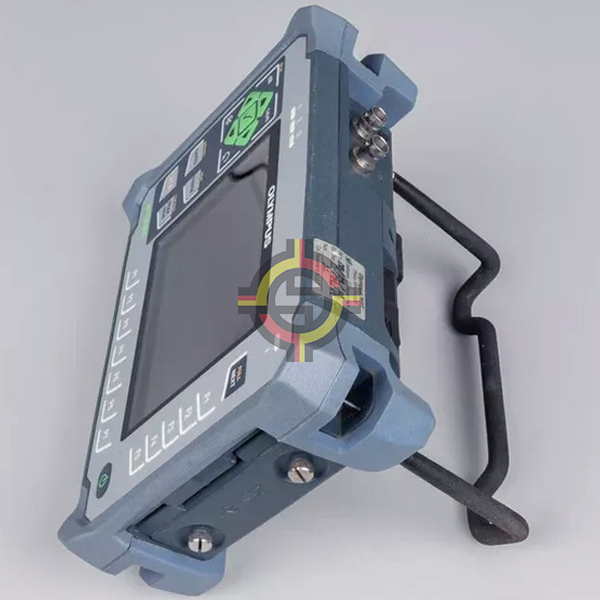

Olympus EPOCH 650 Ultrasonic Flaw Detector

The EPOCH 650 Digital Ultrasonic Flaw Detector combines Olympus’ industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 650 flaw detector’s blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.

The large, full VGA transflective display combined with our patented digital high dynamic range receiver provides a stable, striking A-scan representation in any lighting condition. The EPOCH 650 is designed to meet the requirements of ISO 22232-1 and allows a full range of standard and optional flaw detection features. Multiple onboard reporting tools and a comprehensive data filing system enable you to easily collect and report high quality inspection data. The rugged, ergonomic design allows use in nearly any inspection environment, while the flexible PerfectSquare pulser and highest number of digital filters in its class can tackle nearly any application.

The EPOCH 650 Digital Ultrasonic Flaw Detector combines Olympus’ industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 650 flaw detector’s blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.

The EPOCH 650 is designed for use in nearly any inspection environment, from bench top testing in a laboratory to extreme outdoor and hazardous conditions. Designed for IP rating in either knob (IP66) or navigation pad (IP67) configurations, and tested to very high environmental and reliability standards, the EPOCH 650 allows users in any inspection environment to feel confident in both the performance and durability of the instrument.

Key Features

o  Designed to meet the requirements of ISO 22232-1

o  PerfectSquareTM tunable square wave pulser

o  Full screen A-scan mode

o  Digital high dynamic range receiver

o  Thirty digital filters for enhanced signal-to-noise ratio

o  2 kHz PRF for rapid scanning

o  Knob or navigation pad adjustment configurations

o  Large, full VGA sunlight readable display

o  15 hours of battery life

o  Standard dynamic DAC/TCG and onboard DGS/AVG

o  Multiple on-board report formats

o  MicroSD memory card for data transfers

o  Optional Corrosion Module software with Encoded B-scan

o  USB On-The-Go (OTG) for PC communication

o  Alarm and VGA outputs

o  Optional analog output

SPECS:

Instrument Inputs/Outputs

USB Ports: USB On-The-Go (OTG)

RS-232 Port: Yes

Video Output: VGA output standard

Analog Output: 1 analog output (optional), Selectable 1 V/10 V Full Scale, 4mA max

Alarm Output: 3 alarm outputs, 5 V TTL, 10 mA

Trigger I/O: Trigger input, 5V TTL; Trigger output, 5V TTL, 10 mA max

Encoder Inputs: 1-axis encoder line (quadrature - Corrosion Module mode only)

Environmental Ratings

IP Rating

Designed to meet the standards of the Ingress Protection (IP) rating number IP67 (navigation pad version) or IP66 (knob version) per IEC 60529-2004 (Degrees of Protection provided by enclosures – IP Code).

The product design was confirmed to meet the IP rating by means of Olympus internal design verification test process that occurs prior to the release of the product to production.

Explosive Atmosphere

Safe operation as defined by Class I, Division 2, Group D, as defined in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F, Method 511.4, Procedure I.

Shock Tested

MIL-STD-810F, Method 516.5 Procedure I, 6 cycles each axis, 15g, 11 ms half sine.

Vibration Tested

MIL-STD-810F, Method 514.5, Procedure I, Annex C, Figure 6, general exposure: 1 hour each axis

Operating Temperature

–10 °C to 50 °C (14 °F to 122 °F)

Battery Storage Temperature

0 °C to 50 °C (32 °F to 122 °F)

General

Overall dimensions (W x H x D): 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)

Weight: 1.6 kg (3.5 lb), including lithium-ion battery

Keypad: English, International, Japanese, Chinese

Languages: English, Spanish, French, German, Japanese, Chinese, Portuguese, Russian

Transducer connections: BNC or Number 1 LEMO

Data storage: 100,000 IDs onboard, removable 2 GB MicroSD card (standard)

Battery type: Single lithium-ion rechargeable standard

Battery life: 15 h to 16 h (lithium-ion)

Power requirements: AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 HZ to 60 Hz

Display type: Full VGA (640 x 480 pixels) transflective color LCD, 60 Hz update rate

Display dimensions (W x H, Diag.): 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)

Receiver

Gain: 0 to 110 dB

Maximum input signal: 20 V p-p

Receiver input impedance: 400 Ω ± 5%

Receiver bandwidth: 0.2 MHz to 26.5 MHz at -3 dB

Digital filter settings: Thirty digital filter sets standard

Seven ISO 22232-1:2020 compliant filters (0.2-10 MHz, 2.0-21.5 MHz, 8.0-26.5 MHz, 0.5-4 MHz, 0.2-1.2 MHz, 1.5-8.5 MHz, 5-15 MHz)

Rectification: Full-wave, Positive Half-wave, Negative Half-wave, RF

System linearity: Horizontal: ± 0.5% FSW

Resolution: 0.25% FSH, amplifier accuracy ± 1dB

Reject: 0 to 80% FSH with Visual Warning

Amplitude measurement: 0 to 110% full screen height with 0.25% resolution

Measurement rate: Equivalent to PRF in all modes

Calibration

Automated calibration: Velocity, Zero Offset

Straight Beam (First Backwall or Echo-to-Echo)

Angle Beam (Soundpath or Depth)

Test modes: Pulse Echo, Dual, or Through Transmission

Units: Millimeters, inches, or microseconds

Range: 3.36 mm to 13,388 mm (0.132 in. to 527.10 in.) @ 5,900 m/s (0.2320 in./μ)

Velocity: 635 m/s to 15240 m/s (0.0250 in./µs to 0.6000 in./µs)

Zero offset: 0 µs to 750 µs

Display delay: -59 mm to 13,401 mm (-2.320 in. to 526.97 in.) @ longitudinal velocity in steel

Refracted angle: 0° to 90° in 0.1° increments

Gates

Measurement gates: 2 fully independent gates for amplitude and TOF measurements

Gate start: Variable over entire displayed range

Gate width: Variable from Gate Start to end of displayed range

Gate height: Variable from 2 to 95% full screen height

Alarms: Positive and Negative Threshold, Minimum Depth (Gate 1 and Gate 2)

Measurements

Measurement display locations: 5 locations available (manual or auto selection)

Gate (1, 2) : Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min./Max. Depth, Min./Max. Amplitude

Echo-to-Echo: Standard Gate 2-Gate 1, Optional IF Gate Tracking

Other measurements: Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 A, B, C and D values, Reject Value, Echo to RefdB values

DAC/TCG: Standard

DAC points: Up to 50 points, 110 dB dynamic range

Special DAC modes: Custom DAC (up to 6 curves), 20-80% View

Curved surface correction: Standard OD or Bar correction for Angle Beam measurements

Corrosion (optional): Zero-cross measurement algorithm, V-Path correction, Single or Echo-to-Echo, Encoded B-scan

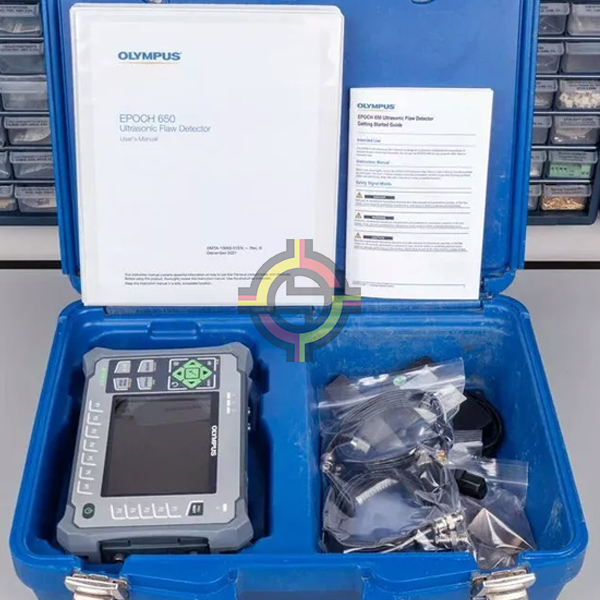

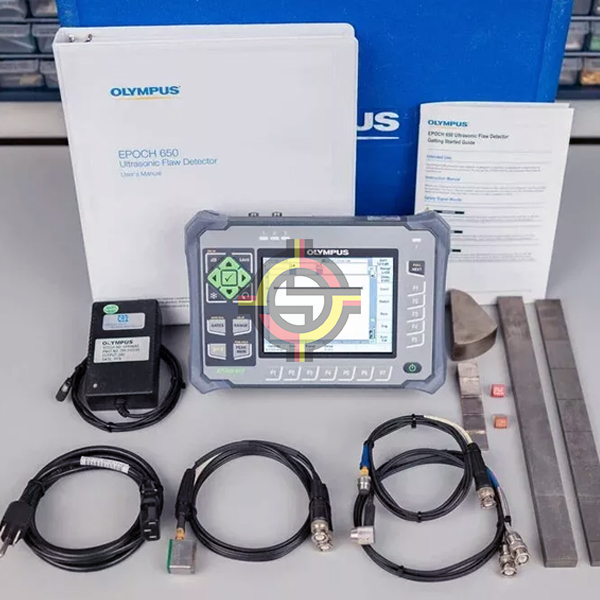

Includes:

ü Detector unit

ü Charging cable

ü Mini USB cable

ü User manual CD

ü Getting started guide

ü 2x sensor cable units part No. U8800185.

ü Accessory part M110-RM

ü Accessory part M112-RM.

ü Blue plastic carry case.

ü Users Manual
