NDT Systems Avenger EZ Flaw Detector - Sale! (Used)

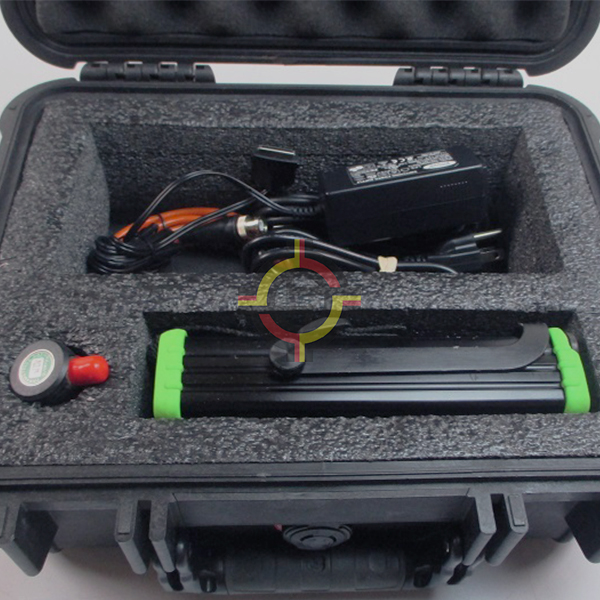

The NDT Systems Avenger EZ Flaw Detector provides various flaw detection capabilities for linear, longitudinal, and shear wave flaw detection. A separate thickness measurement mode adds versatility to an already effective detector. Optional software upgrades can add additional state-of-the-art flaw detection features. The package includes 6 NiMH AA batteries, an AC charger, a wrist strap, a 2 oz coolant bottle, and a carrying case.

The NDT Systems Avenger EZ comes with multiple general features such as lemo 00 connectors, single and dual element transducers, and programmable user setups. The thickness mode features include gate selection and parameters. Among the flaw detection features are the dual gate capability and an alarm signal threshold. The NDT Systems Avenger EZ can support thickness measurement and flaw detection simultaneously. Both gates and results are displayed on the same screen.

Features:

▫Lightweight, handheld

▫Multi gate capability

▫Split-screen, A-trace, B-scan

▫Automatic probe recognition

▫USB, alarm modes

Applications:

▫Chemical milling

▫Investment Castings

▫Turbine blades

▫Tube and Pipe

▫Tanks

▫Boilers Glass

▫Metals, plastics, composites, glass, rubber

AWS WELD TRIG

▫Multi gate capability

▫Split-screen, A-trace, B-scan

▫Automatic probe recognition

▫USB, alarm modes

▫Standard package includes instrument, Pelican style shipping case, manual, batteries and AC charger

▫Splitscan view- Display A-Trace and B-scan simultaneously

▫AWS- Calculations included

▫DAC- Distance Amplitude Correction included

▫Autotrack- Auto Tracking Zoom

▫Dual A-Trace Splitview

▫Multiple Gate capability

▫Peak Echo hold: fixed or unique timed ‘waterfall’ reset

▫Calibration- Range, Delay, Zero and Velocity

▫Multiple probe capability

▫Auto probe recognition or library selectable

▫Adjustable Gain

▫Backlight- on/off/auto

▫Alarm modes- LED thickness high, low or high/low

▫Programmable user setups

▫Screen freeze mode, freeze and save

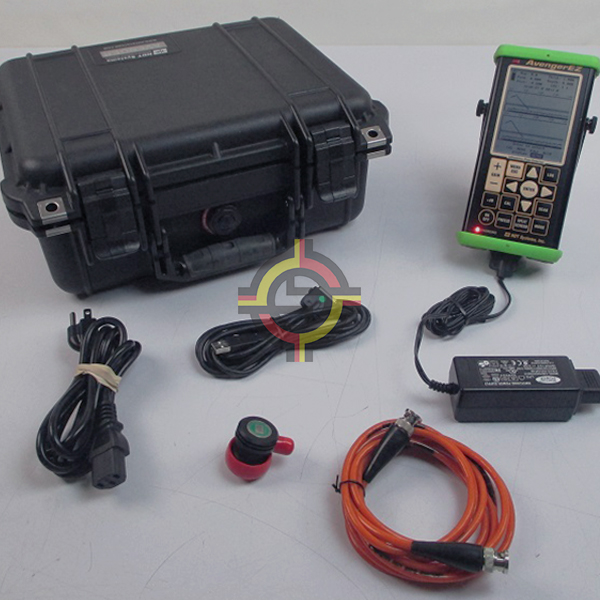

Sale includes the following items:

ü Avenger EZ AWS unit

ü Alkaline AA Bateries

ü 2.25 MHZ / 3.12″ Transducer

ü BNC to Microdot Probe Cable
