Leica ScanStation P20 Laser Scanner - Sale! (Used)

Leica ScanStation P20 Laser Scanner

Productivity & Accuracy

An innovative combination of advanced time-of-flight range measurement plus modern Waveform Digitising (WFD) technology enables the compact Leica ScanStation P20 to achieve ultra-high scan speeds and low-noise performance at extended range (to 120 m). Together with high-accuracy angular measurements and survey-grade tilt compensation, Leica ScanStation P20 delivers unprecedented ultra-high speed scan data quality for as-built and scene surveys.

Scan up to 1 million points per second

Leica ScanStation P20 is the ideal instrument when very short time windows are available for capturing High-Definition Survey™ data or when ultra-high density, full dome scan data is needed for client deliverables.

Unmatched environmental capabilities

Developed and manufactured by Leica Geosystems, Leica ScanStation P20 lets users apply ultra-high speed scanning in operating temperatures ranging from –20° C to 50° C. Moreover, with an Ingress Protection rating of IP54 and an eye-safe laser class 1 rating, users can reap the benefits of ultra-high speed scanning for even more sites and projects.

“Check & Adjust” for added confidence

Leica ScanStation P20 is the first laser scanner to feature a valuable “Check & Adjust” capability. Instead of sending the instrument to a service centre, users can electronically check the accuracy of their ScanStation P20 themselves and automatically adjust instrument parameters to ensure the highest level of performance.

SPECS:

General

-  Instrument type: Compact, ultra-high speed pulsed laser scanner with survey grade accuracy, range and field-of-view; integrated camera and laser plummet

-  User interface: Onboard control, notebook or tablet PC, PDA

-  Data storage: Integrated solid-state drive (SSD) or external USB flash drive

-  Camera: Auto-adjusting, integrated high-resolution digital camera with zoom video

System Performance

-  Accuracy of single measurement:

-  3D Position Accuracy: 3 mm at 50 m; 6 mm at 100 m

-  Linearity error: ≤ 1 mm

-  Angular accuracy: 8” horizontal; 8” vertical

-  Target acquisition* 2 mm standard deviation up to 50 m

-  Dual-axis compensator: Selectable on/off, resolution 1”, dynamic range /– 5’, accuracy 1.5”

Scanner:

-  Scanner Leica ScanStation P20

-  Guarantee and current maintenance contracts

-  The scanner is used and in very good conditions.

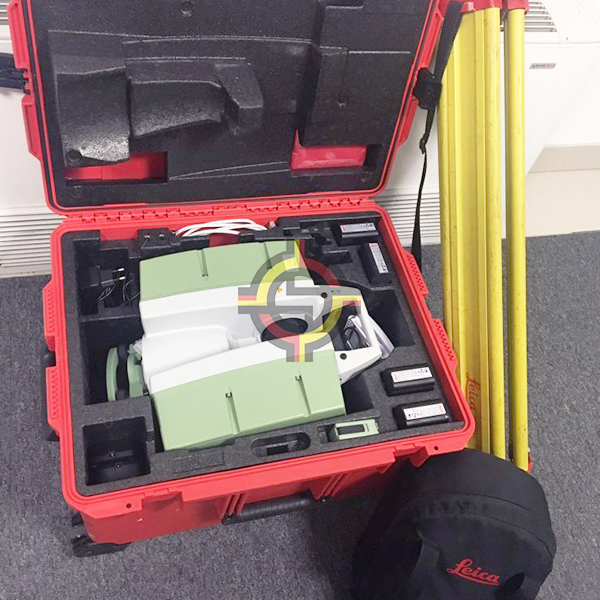

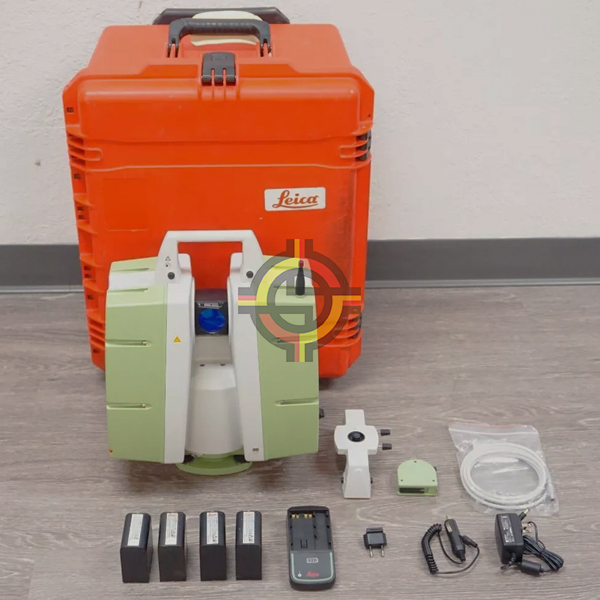

Accessories for the scanner:

ü Leica Tripod GST120-9

ü Leica GEB242 - 4 batteries

ü Leica GZT21 Scanning Target x4

ü Leica GKL311 - charger x2

ü Adapter for Leica GKL311 x2

ü Leica GEV228 - Data Transfer Cabel

ü Leica GHM008 Scanner Height Meter

ü Data storage capacity - 200Gb internal storage

ü User Manual
