FARO Focus S 350 Laser Scanner - Sale! (Used)

FARO Focus S 350 Laser Scanner enables you to capture fast, straightforward and accurate measurements of complex objects and buildings

The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural colour overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.

The Focus S 350 offers extra long range of 350m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Faro Focus S 350 Technical Information:

Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000

Ranging error: 4:    ±1mm

Angular accuracy: 5    19 arcsec for vertical/horizontal angles

3D position accuracy: 6    10m: 2mm / 25m: 3.5mm

Color Unit

Resolution: Up to 165 megapixel color

High Dynamic Range (HDR): Exposure Bracketing 2x, 3x, 5x

Parallax: Minimized due to co-axial design

Deflection Unit

Field of view (vertical7/horizontal): 300° / 360°

Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) /

0.009° (40,960 3D-Pixel on 360°)

Max. vertical scan speed: 97Hz

Laser (Optical Transmitter)

Laser class: Laser class 1

Wavelength: 1550nm

Beam divergence:  0.3mrad (1/e)

Beam diameter at exit: 2.12mm (1/e)

Data Handling and Control

Data storage: SD™, SDHC™, SDXC™; 32GB card

Scanner control: Via touchscreen display and WLAN connection. Access by mobile devices with HTML5

Interface Connection

WLAN: 802.11n (150Mbit/s), as Access Point or client in existing networks

Integrated Sensors

Dual axis compensator: Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°

Height sensor: Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan.

Compass8: The electronic compass gives the scan an orientation

GNSS: Integrated GPS & GLONASS

On-site Compensation: Creates a current quality report and provides the option to improve the device's compensation automatically.

Accessory Bay: The accessory bay is located on top of the laser scanner and is used to connect versatile accessories to the scanner.

General

Power supply voltage: 19V (external supply) 14.4V (internal battery)

Power consumption: 15W idle, 25W scanning, 80W charging

Battery service life:  4.5 hours

Operating temperature: 5° - 40°C

Extended operating temperature: 9    -20° - 55°C

Storage temperature: -10° - 60°C

Ingress Protection: IP54

Humidity: Non-condensing

Weight incl. battery: 4.2kg

Size: 230 x 183 x 103mm

Maintenance / calibration: Annual

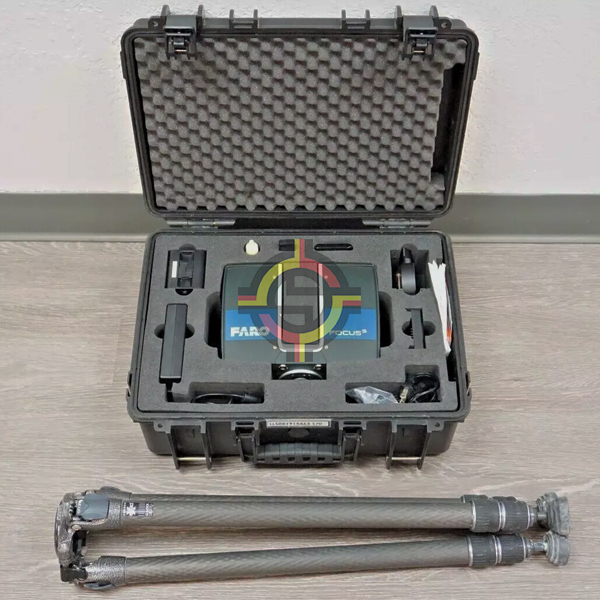

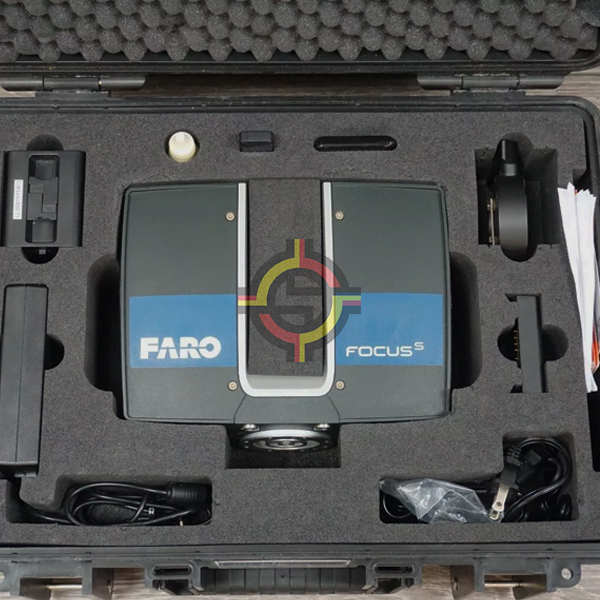

INCLUDES:

ü Faro Focus S350 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality

ü Battery Power Block, Battery Power Dock, 90W Power Supply

ü Optic Cleaning Fluid, Optic Cleaning Tissues

ü 32GB SD Card, SD Card Reader, SD Card Cover

ü Allen Wrench

ü Rugged Transport Case

ü Calibration Certificate

ü Quick Start Guide

ü 2-Year Warranty
