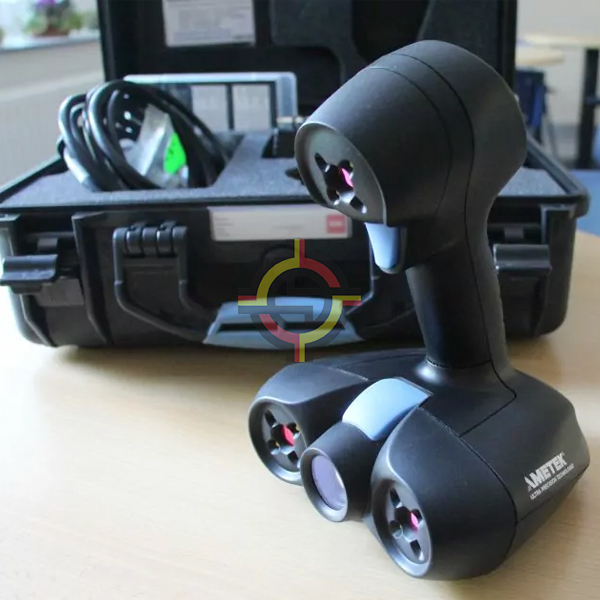

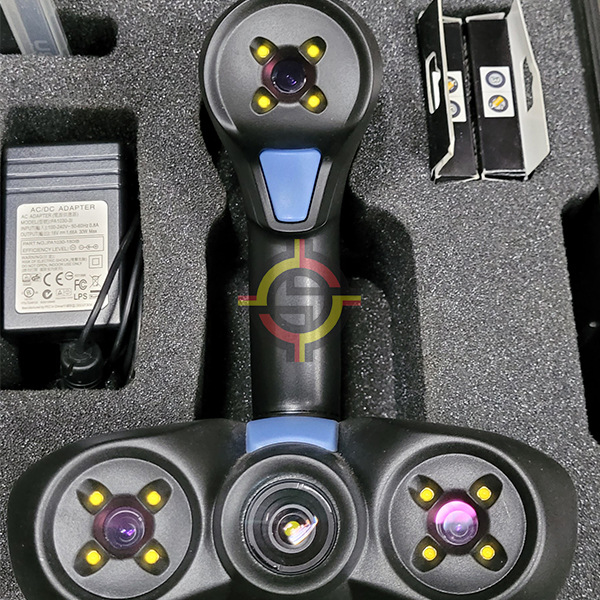

Creaform Go!SCAN 20 3D Scanner - Sale! (Used)

Creaform Go!SCAN 20 3D Scanner: they’re very fast, delivering consistent high-quality 3D models in HD color. Through their highly intuitive process, these handheld, self-positioning systems can be used by anyone without prior experience or training. Their underlying technology accelerates the overall experience: no preparation or specific setup needed, large scanning area, fast measurement, and direct mesh output. The resulting 3D models can be integrated to any computer-assisted process like archiving, restoration, analysis or content creation.

Creaform GoSCAN 20 is perfectly suited for scanning small parts with intricate details.

Accuracy: Up to 0.100 mm (0.004 in.)

Volumetric accuracy*: 0.300 mm/m (0.0036 in./ft)

Resolution: 0.100 mm (0.004 in.)

Measurement rate: 550,000 measurements/s

Light source: White light (LED)

Positioning methods: Geometry and/or color and/or targets

Scanning area: 143 x 108 mm (5.6 in x 4.3 in)

Stand-off distance: 380 mm (15 in.)

Depth of field: 100 mm (4 in.)

Part size range (recommended): 0.05 – 0.5 m (2 – 20 in.)

Texture resolution: 50 to 250 DPI

Texture colors: 24 bits

Software: VXelements

Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr

Compatible software: 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Dassault Systèmes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage).

Weight: 930 g (2.05 lbs.)

Dimensions: 154 x 178 x 235 mm (6 x 7 x 9.2 in.)

Connection standard: 1 x USB 2.0

Operating Temperature Range: 5-40 °C (41-104 °F)

Operating Humidity Range (Non-Condensing): 10-90%

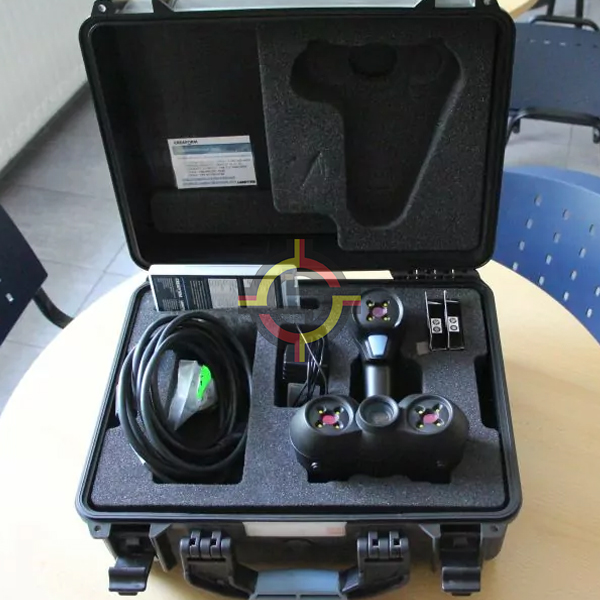

Creaform GoSCAN 20 package includes:

·   Creaform GoSCAN 20 3D Scanner

·   VXelements software

·   Carrying case

·   4 meters custom USB cable

·   18v power supply

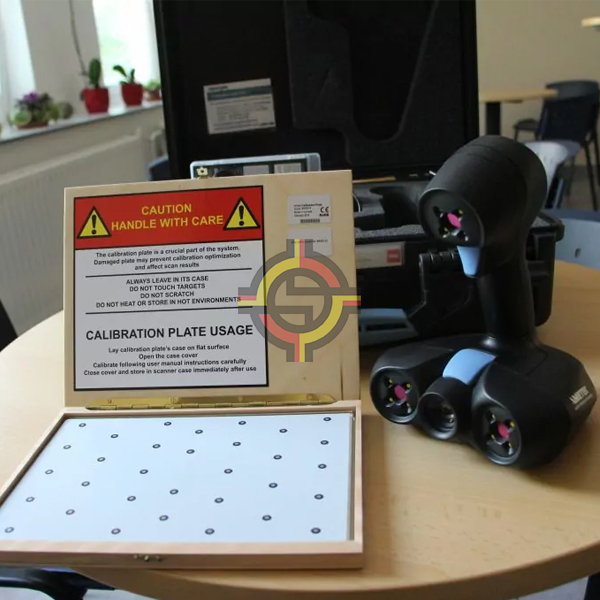

·   7” x 10” calibration plate

·   3mm Light Adhesive Positioning Targets – 500/box

·   3 mm Positioning targets with black contour 1×500

·   3 mm Positioning targets with black contour and light adhesive 1×500

·   3D scanning manual turntable

·   Triangular references for GO!SCAN 20 – set of 15 – (angular support for 3mm targets to use along with Go!SCAN 20 only)

·   1 year warranty, parts and labor
